Fldigi Users Manual  4.1.17
Menus

Menu Heirarchy

Menu


Files


Folders

Folders

  • Fldigi config... - open the OS native file explorer to the folder containing the fldigi operating & data files.
  • NBEMS files... - open the OS native file explorer to the folder containing the NBEMS data files
  • FLMSG files... - open the OS native file explorer to the folder containing the NBEMS/FLAMP data files
  • Data files. See Supporting Data Files Acquisition

Macros

Macros

  • Open Macros - open a macro definition file ... changes the MACRO keys immediately
  • Save Macros - save the current macro definitions to a designated file

Text Capture

Text Capture

Capture all received and transmitted text to a date-time stamped file. Each day's data will be stored in a single file in which the text is appended: fldigiYYYYMMDD.log. This file will be in the "Fldigi config..." folder which can be accessed per the File/Folders menu item. A brief example log of Rx data:

--- Logging started at Wed Jan  5 18:42:51 2011 UTC ---
RX 14071955 : PSK31 (2011-01-05 18:42Z): d dx sk S
RX 14071756 : PSK31 (2011-01-05 18:42Z): PSE -lr dACQ CQ de WX1GRS WX1GRS
RX 14071756 : PSK31 (2011-01-05 18:42Z): CQ CQ de WX1GRS WX1GRS
RX 14071756 : PSK31 (2011-01-05 18:42Z): CQ CQ de WX1GRS WX1GRS
RX 14071756 : PSK31 (2011-01-05 18:42Z): PSE K aie =
--- Logging stopped at Wed Jan  5 18:43:04 2011 UTC ---

Each line contains the program state, RX or TX, the frequency, the mode,
the date-time, and the data stream.



Audio

Audio

  • Rx Capture - allows capturing the incoming audio to a wav file
  • Tx Generate - allows capturing the generated tx audio to a wav file
  • Playback - playback a previously captured or generated wav file

Exit

Exit

Exit - exit the program closing down the various interfaces in a nice controlled manner.


Configure Scripts

Executing and Generating Scripts

Config Scripts

Additional information:
Configure Scripting
Configure Script Commands


Op Mode

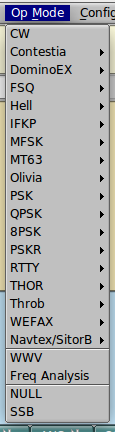

Op Mode - the current operating mode will show as a highlighted menu item.

Op Mode


CW


CW - receive CW 5 to 200 WPM and transmit on any audio frequency using AF CW.

Additional information:
CW
CW Configuration
WinKeyer Interface


Contestia

Contestia

Additional information:
Contestia
Contestia Configuration
Contestia Mode Table


DominoEX

DominoEX

Additional information:
DominoEX
DominoEX Configuration
DominoEX Mode Table


Hell

Hell

Additional information:
Hellschreiber
Feld Hell Configuration
Hell Mode Table


MSFK

MSFK

Additional information:
MFSK
MSFK Mode Table


MT-63

MT63

Additional information:
MT63
MT63 Configuration
MT-63 Mode Table


PSK

PSK

Multi Carrier PSK

Additional information:
PSK Single and Multi-Channel Modems
PSK Mode Table


PSKR

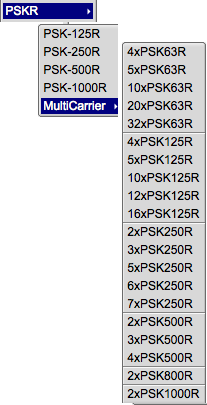

PSKR

All PSKR modes are phase shift keying, with FEC and interleaving.

Additional information:
PSK Single and Multi-Channel Modems
PSK/PSKR Mode Table


QPSK

QPSK

Additional information:
PSK Single and Multi-Channel Modems
QPSK Mode Table


8PSK

8PSK

Additional information:
PSK Single and Multi-Channel Modems
8PSK Mode Table


Olivia

Olivia

Additional information:
Olivia
Olivia Configuration
Olivia Mode Table


RTTY

RTTY

Additional information:
RTTY
RTTY / FSK Configuration
RTTY Mode Table


THOR

THOR

Additional information:
Thor
Thor Configuration
Thor Mode Table


THROB

throb

Additional information:
Throb
Throb Mode Table


WEFAX

WEFAX

Additional information:
WEFAX


NAVTEX / SITOR

NAVTEX / SITOR

Additional information:
NAVTEX and SITOR-B


SSB, WWV, Freq Anal, FMT

Analysis / WWV
  • SSB - fldigi does not transmit, but can be used for rig control, signal frequency analysis and logging
  • WWV - special receive only modem used for calibrating sound card
  • Freq Anal - used for carrier detection and frequency measurement
  • FMT - Frequency Measurement Tests modem


Additional information:
Frequency Analyzer
WWV codec PPM measurement


Configure



See Initial Configuration Page


View

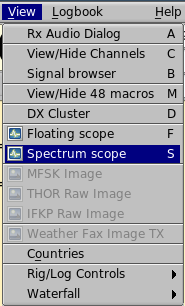

View

View Controls

View Waterfall

  • View/Hide Channels - Opens / Closes muli-signal viewer, shares space with Rx/Tx panels
  • Signal browser - open the psk/rtty viewer dialog to display up to 30 simultaneously decoded psk signals Dialog viewer contains shared data / control with the View/Hide Channel viewer
  • View/Hide 48 macros - toggle display of 4 rows of macros
  • DX Cluster - open DX cluster dialog
  • Floating Scope - Opens up a resizable, moveable scope display
  • Spectrum dialog - Opens a spectrum analysis dialog
  • MFSK Image - Opens the MFSK picture image (if being received)
  • THOR Raw Image - Opens the THOR picture image (if being received)
  • IFKP Raw Image - Opens the IFKP picture image (if being received)
  • Weather Fax Image RX - Opens WEFAX receive dialog
  • Weather Fax Image TX - Opens WEFAX transmit dialog
  • Countries - DXCC entities
  • Rig/Log Controls
    • Full - show all logbook and rig controls
    • Rig control and logging - minimizes the logging panel for normal QSO entries
    • Rig control and contest - minimizes the logging panel for Contest entries
    • None - removes the Rig Control / Log panel from the main User Interface
    • Contest fields - Display alternate 2nd line in qso logging area; provides access to contest logging fields
  • Waterfall
    • Docked scope - toggles the visibility of the docked scope display to the right of the waterfall
    • Min WF Controls - toggles the visibility of various waterfall controls as configured by the user



Logbook




Help

Help


  • Beginners' Guide
  • On line documentation... - open up default browser to the on-line Help site
  • Fldigi web site... - open up default browser to the www.w1hkj.com primary web page
  • Reception reports... - open up browser to the http://pskreporter.info web page preset to your callsign
  • Command line options - display a list of all command line switches available to the fldigi user
  • Audio device info - displays information about all audio devices detected on the computer system
  • Build info - displays all relevant information regarding the compilation and link for the application
  • Event log - opens a text display window that records various events depending on the level of reporting depth selected. This is a useful window for reporting problems with the program to the developers.
  • Check for updates... fldigi silently opens a download web site, checks and reports on whether a new version is available.
  • About - Version number and a little about the programmers



Spot, Tx RSID, Rx RSID, and Tune Buttons

Menu
  • Spot button - The "Spot" light button is visible if callsign spotting is enabled. Use this button to toggle the callsign spotting reporter on and off. It is automatically turned off when playback is selected in the Files menu. The main window text is not searched if the viewer is active, i.e., if it is displayed and the current modem is PSK. See PskReporter and Notifier.
  • RxID button - toggles the detection of Reed Solomon Identification codes.
  • TxID button - toggles the transmission of the RSID signal.
  • Tune button - toggles the "Tune" mode which causes fldigi to insert a tone at the current waterfall frequency. The peak-to-peak amplitude of this tone is the standard by which you should set your transmitter drive or adjust your antenna matching network.
  • The right most button is normally not visible. This is the count-down timer button that is enabled when a macro button has been configured to repeat after a specified number of seconds. This button shows the count-down to the next transmission. Pressing the button disables the count and restores fldigi to normal keyboard operation.
